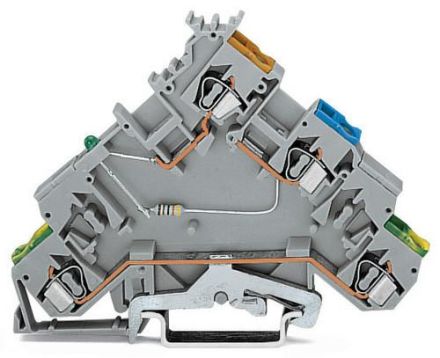

Wago 280-566/281-496 2.50qmm grey initiator feed terminal

In stock

SKU: 931464

Price on request

€6.91

€0

Overview

280-566/281-496 2.50qmm grey initiator feed terminal Manufacturer article number: 280-566/281-496, Manufacturer article name: 2.50qmm grey

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, single-stranded:	0.08 to 2.5 mm²
Color of the lamp:	green
Connectable conductor cross-section, fine-stranded without Wire end ferrule:	0.08 to 2.5 mm²
Rated current In:	20 A
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Operating temperature:	105 °C
Color:	gray
Rated voltage:	24 V
Number of levels:	1
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
LED switching for:	NPN
With PE connection:	no
With shield connection:	no
With feed-in function:	yes
Number of terminal points per level:	2
Levels internally bridged:	no
Can be cross-connected:	no
Isolation function:	no
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
