Wago 280-944/281-591 Component terminal block series 280

In stock

SKU: 980131

Price on request

€12.80

€0

Overview

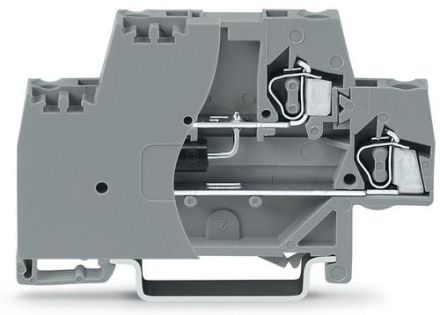

Component terminal, double-deck, with end plate, with transil diode 1.5KE82C, DC 60 V, for mounting rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP®, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Rated current In:	20 A
Operating temperature:	105 °C
Rated voltage:	60 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Color:	gray
Component type:	Varistor
Explosion-tested version Ex e:	no
Material of the insulating body:	Thermoplastic
Width:	10 mm
Height:	64 mm
Depth:	39.5 mm
