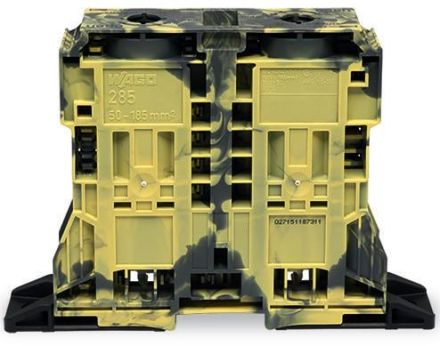

Wago 285-1167 2-wire 185qmm dark grey-yellow feed-through terminal

Wago 285-1167 2-wire 185qmm dark grey-yellow feed-through terminal

In stock

SKU: 931366

Price on request

€50.20

€0

Into a basketIn the basketGo

Overview

285-1167 2-wire 185qmm dark grey-yellow through terminal Manufacturer article number: 285-1167, Manufacturer article name: 2-wire 185qmm dark grey-yellow

Property	Value
Color:	multi-colored
Connectable conductor cross-section, fine-stranded without wire end ferrule:	50 to 185 mm²
Connectable conductor cross-section, stranded:	50 to 185 mm²
Rated voltage:	1000 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	353 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	50 to 185 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	50 to 185 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB2 conductors 185 sq mm dark grey-yellow

Minimal order4 pcs

Manufacturer

HAN285-1167

GTIN4055143424134

Connectable conductor cross-section solid50 to 185 mm²

Connectable conductor cross-section stranded50 to 185 mm²

Rated voltage1000V

Rated current In353 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 285-1167 2-wire 185qmm dark grey-yellow feed-through terminal

Wago 285-1167 2-wire 185qmm dark grey-yellow feed-through terminal

Price on request

€50.20

€0

Into a basketIn the basketGo
