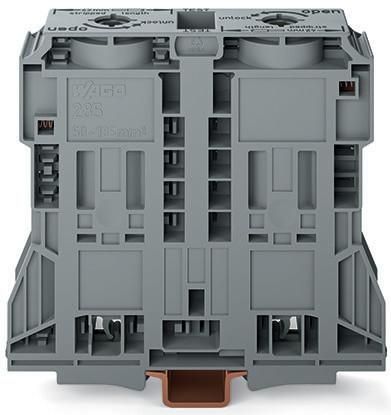

Wago 285-1189 2-wire through terminal

In stock

SKU: 973240

Price on request

€54.30

€0

Overview

2-conductor feed-through terminal

Property	Value
QS single-wire:	50 to 185 mm²
QS fine-wire:	50 to 185 mm²
QS multi-wire:	50 to 185 mm²
Color:	gray
QS wire end ferrule:	50 to 185 mm²
Rated voltage:	1000 V
Levels:	1
Terminal points per level:	2
Rated current In:	250 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	32 mm
Height:	130 mm
Depth:	116 mm
