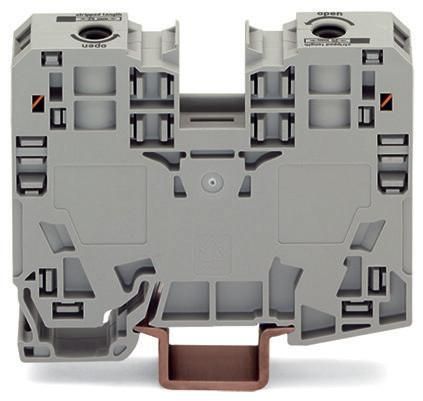

Wago 285-136 2-wire through terminal

In stock

SKU: 948998

Price on request

€10.22

€0

Overview

2-conductor feed-through terminal

Property	Value
QS single-core:	6 to 35 mm²
QS fine-core:	6 to 35 mm²
QS multi-core:	6 to 35 mm²
Color:	black
QS wire end ferrule:	6 to 35 mm²
Rated voltage:	1000 V
Levels:	1
Terminal points per level:	2
Rated current In:	125 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Internal bridged levels:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Width:	16 mm
Height:	86 mm
Depth:	63 mm
