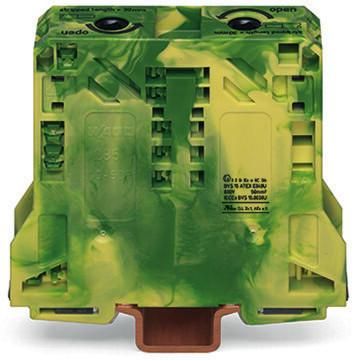

Wago 285-157/999-950 protective conductor terminal block series 285

In stock
SKU: 975680
€33.53
Into a basketIn the basketGo

Overview

2-conductor protective conductor terminal, 50 mm², suitable for Ex e II applications, side label holders, only on mounting rail 35 x 15, 2.3 mm thick, copper, POWER CAGE CLAMP, 50.00 mm², green-yellow

Property Value
Operating temperature: 105 °C
QS single-wire: 10 to 50 mm²
QS multi-wire: 10 to 50 mm²
Connectable conductor cross-section, finely stranded without wire end ferrule: 10 to 70 mm²
QS wire end ferrule: 10 to 50 mm²
PEN function: yes
Connection: spring-loaded connection
Design of electrical connection 2: spring-loaded connection
Levels: 1
Terminal points per level: 2
Color: green/yellow
Mounting type: Top hat rail TH35
Flammability class of the insulating material according to UL94: V0
End plate required: no
Material of the insulating body: Thermoplastic
Width: 20 mm
Height: 94 mm
Depth: 87 mm

Characteristics

Minimal orderPcs
ManufacturerWago
HAN285-157/999-950
GTIN4055143418546
Operating temperatur105°C
Width20 mm
Height94 mm
Mounting typeDIN rail TH35
Depth87 mm
Wago 285-157/999-950 protective conductor terminal block series 285
Wago 285-157/999-950 protective conductor terminal block series 285
€33.53
Into a basketIn the basketGo
