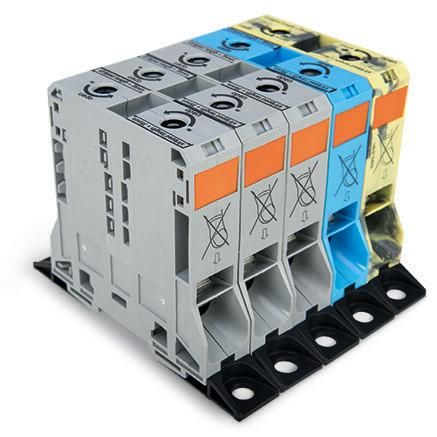

Wago 285-188 three-phase set

In stock

SKU: 975688

Price on request

€117.82

€0

Overview

Three-phase set, with high-current terminals 95 mm², with mounting flanges, copper, 95 mm², POWER CAGE CLAMP, 95.00 mm², multi-colored

Property	Value
Number of poles:	5
Rated voltage:	1000 V
Material of the insulating body:	Thermoplastic
Rated current In:	150 A
Color:	multi-colored
Operating temperature:	105 °C
QS fine-stranded:	25 to 95 mm²
QS single-stranded:	25 to 95 mm²
Mounting type:	DIN rail TH35
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminals per pole:	2
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	125 mm
Height:	145 mm
Depth:	108 mm
