Wago 285-607/999-950 PE TERMINAL 2-CONDUCTOR 35 QMM F. TS 35

In stock

SKU: 962026

Price on request

€55.44

€0

Overview

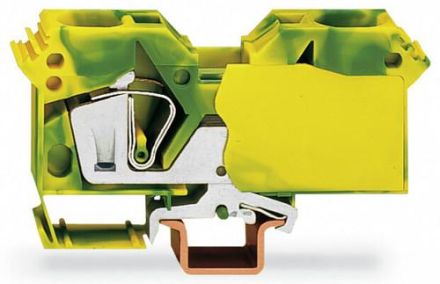

2-conductor protective conductor terminal 25 mm² suitable for Ex e II applications side labeling slots only on mounting rail 35 x 15 CAGE CLAMP® 25.00 mm² green-yellow

Property	Value
Operating temperature:	105 °C
QS single-wire:	6 to 35 mm²
QS multi-wire:	6 to 35 mm²
Connectable conductor cross-section finely stranded without wire end ferrule:	6 to 35 mm²
QS wire end ferrule:	6 to 25 mm²
PEN function:	yes
Connection:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Levels:	2
Terminal points per level:	1
Color:	green/yellow
Mounting type:	top hat rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
Width:	16 mm
Height:	115.5 mm
Depth:	52.5 mm
