Wago 289-103 Component terminal block series 289

In stock

SKU: 521384

Price on request

€38.31

€0

Overview

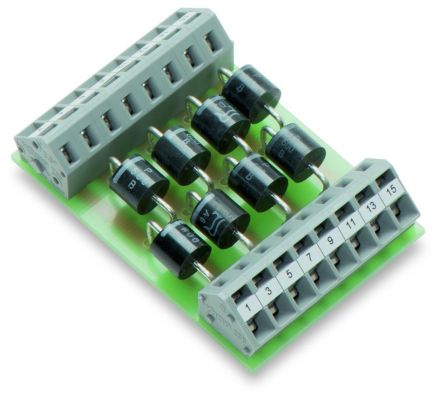

Component module with diode, with 8 pieces, diode P600B, 2, 50 mm²

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Rated current In:	1 A
Operating temperature:	-25 to 30 °C
Rated voltage:	250 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	16
Levels internally bridged:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Color:	other
Component type:	Diode
Explosion-tested version 'Ex e':	no
Material of the Insulating body:	Thermoplastic
