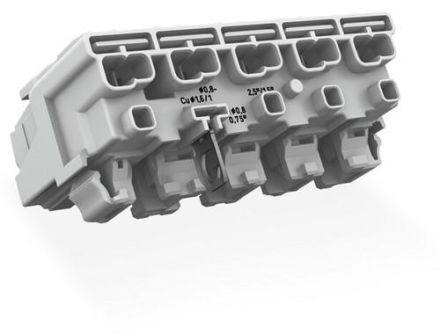

Wago 294-8115 terminal block 0.5-2.5qmm series 294 24A 5p

In stock

SKU: 967685

Price on request

€1.40

€0

Overview

294-8115 LAK17 5P LIN dPE L3 L2 L1 PE N

Property	Value
Number of poles:	5
Rated voltage:	500 V
Material of the insulating body:	other
Rated current In:	24 A
Color:	white
Operating temperature:	125 °C
QS finely stranded:	0.5 to 2.5 mm²
QS single-stranded:	0.5 to 2.5 mm²
QS multi-stranded:	0.5 to 2.5 mm²
QS wire end ferrule:	0.5 to 1.5 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	plug-in terminal connection
Number of terminal points per pole:	2
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	30 mm
Height:	22.4 mm
Depth:	27.3 mm
