Wago 706-150/350-200 sensor-actuator cable 50p 2m manufacturer spec

In stock

SKU: 962629

Price on request

€87.34

€0

Overview

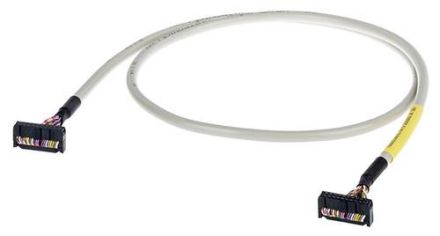

Connection cable, 50-pin, connector according to DIN 41651, 50-pin, connector according to DIN 41651, length 2 m, conductor cross-section 0.14 mm²

Property	Value
Rated current In:	1 A
Color of the cable sheath:	gray
With LED display:	no
Material of the cable sheath:	other
Material of the contact base:	other
Number of poles:	50
Field-side connection:	other
Type of plug contact, field-side:	Female (socket)
Cable feed, field-side:	other
Connection, housing-side:	other
Plug housing:	Female (socket)
Cable feed, housing-side:	other
Cable length:	2 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature during assembly/handling:	-25 to 70 °C
Protection class (IP):	other
