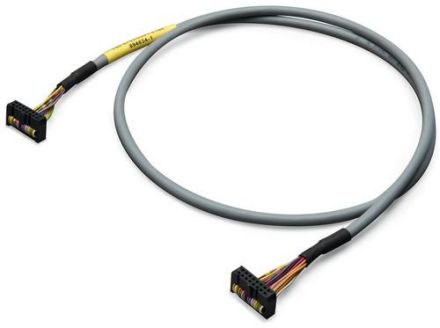

Wago 706-753/301-100 Bu, 1m sensor/actuator cable 16p

In stock

SKU: 973428

Price on request

€39.95

€0

Overview

Connection cable, 16-pin, connector according to DIN 41651, 16-pin, connector according to DIN 41651, length 1 m, 1 MOhm, conductor cross-section 0.14 mm²

Property	Value
Rated current In:	1 A
Color of the cable sheath:	gray
With LED display:	no
Material of the cable sheath:	other
Material of the contact base:	other
Number of poles:	16
Connection field side:	other
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	other
Connection, housing side:	other
Plug housing:	Female (socket)
Cable feed, housing side:	other
Cable length:	1 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature during assembly/handling:	-25 to 70 °C
Protection class (IP):	other
