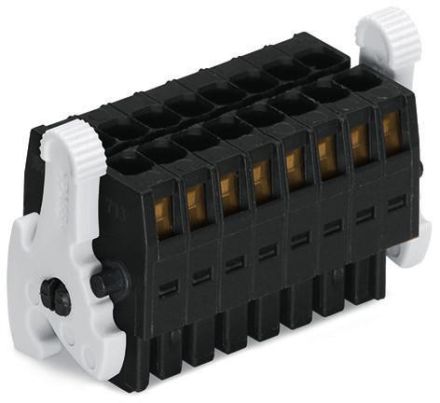

Wago 713-1105/037-000/036-000 female connector 0.08-1.5qmm series 713 10A

In stock

SKU: 971346

Price on request

€9.64

€0

Overview

1-conductor female connector - 2-row, CAGE CLAMP®, 1.5 mm², pitch 3.5 mm, 10-pin, 100% protected against mismating, disconnection aid, strain relief plate, 1.50 mm², black

Property	Value
Number of poles:	10
Rated voltage:	160 V
Material of the insulating body:	Thermoplastic
Rated current In:	10 A
Color:	black
Operating temperature:	-60 to 100 °C
QS fine-stranded:	0.08 to 1.5 mm²
QS single-stranded:	0.08 to 1.5 mm²
QS stranded:	0.08 to 1.5 mm²
QS wire end ferrule:	0.25 to 1 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Width:	3.5 mm
Height:	38.7 mm
Depth:	16 mm
