Wago 713-1415/117-000 10A, 160V, 30p, solder, black connector

In stock

SKU: 977185

Price on request

€9.92

€0

Overview

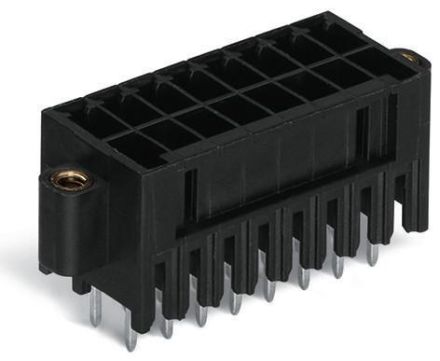

THR pin header, 2-row, solder pin 0.8 x 0.8 mm, straight, 100% protected against mismating, threaded flange, pitch 3.5 mm, 30-pin, black

Property	Value
Number of plug contact rows:	2
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	THR connection
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	black
Contact design:	Pin
Pin length:	3.8 mm
Connector pitch:	3.5 mm
Contact pitch:	3.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Contact coating material:	tin
Material of the insulating body:	Thermoplastic
Angle circuit board/contact:	90° (vertical upwards)
Connection type:	flexible circuit board connector
Number of poles:	30
