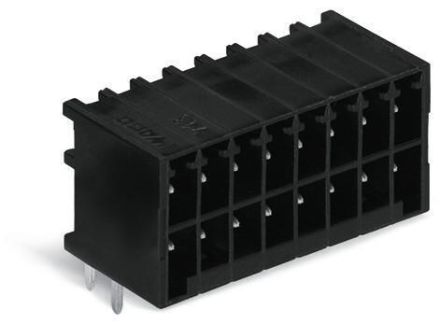

Wago 713-1437 PCB connector pin 34p series 713 sw

In stock

SKU: 981671

Price on request

€9.82

€0

Overview

713-1437 EINL-PINL. 34P. 90G 3.5MM

Property	Value
Number of rows of plug contacts:	2
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	black
Contact design:	pin
Pin length:	3.8 mm
Pitch of connections:	3.5 mm
Pitch of contacts:	3.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible PCB connector
Number of pins:	34
