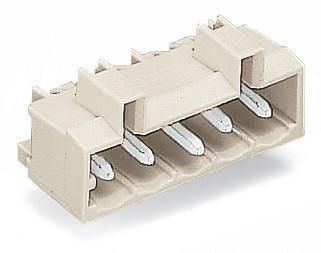

Wago 721-475/001-000 PCB connector pin 15p lgr 1re 5mm

In stock

SKU: 979853

Price on request

€6.46

€0

Overview

THT pin header, solder pin 1.2 x 1.2 mm, angled, 100% protected against mismating, pitch 5 mm, 15-pin, light gray

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	gray
Contact design:	Pin
Pin length:	3.8 mm
Connection pitch:	5 mm
Contact pitch:	5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Contact coating material:	tin
Insulating body material:	Thermoplastic
Angle circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible circuit board connector
Number of poles:	15
