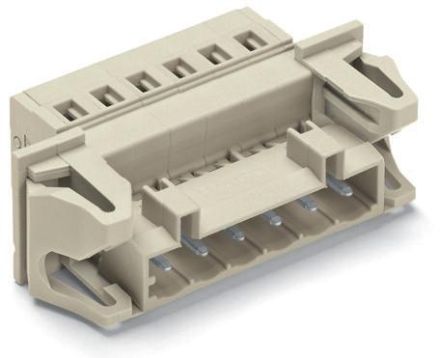

Wago 721-605/114-040 R5mm, 5p, 0.08mm² terminal block

In stock

SKU: 979862

Price on request

€5.49

€0

Overview

1-conductor pin header, CAGE CLAMP®, 2.5 mm², pitch 5 mm, 5-pin, leading PE contact, 100% protected against mismating, snap-in flange, 2.50 mm², light gray

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section finely stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	12 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Contact design:	pin
With protective conductor:	no
Pitch of the connections:	5 mm
Pitch of the contacts:	5 mm
Protection class (IP), mounted:	IP10
Overvoltage category:	III
Pollution level:	2
Contact coating material:	Tin
Housing material:	Plastic
Insulating body material:	Thermoplastic
Contact material:	Other copper alloys
Angle contact/conductor connection:	180° (horizontal)
Connection type:	PCB to cable
Number of poles:	5
Housing coating:	uncoated
