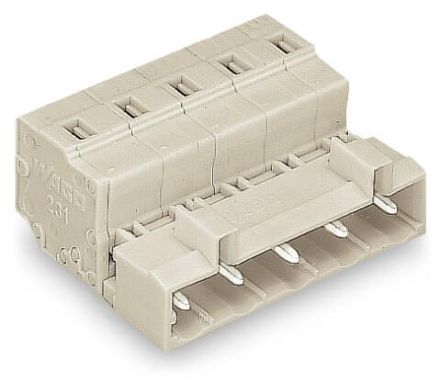

Wago 723-607 pin strip 0.08-2.5qmm series 723 12A 7p

In stock

SKU: 967297

Price on request

€7.11

€0

Overview

723-607 PEN. CC 7.5MM 7-P. MISCONNECTION

< td>6 kV < /tr>

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	630 V
Rated impulse voltage:
Rated current In:	12 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Housing colour:	grey
Contact type:	pin
With protective conductor:	no
Connection pitch:	7.5 mm
Contact pitch:	7.5 mm
Protection class (IP), mounted:	IP10
Overvoltage category:	III
Pollution degree:	2
Material of Contact coating:	Tin
Housing material:	Plastic
Material of the insulating body:	Thermoplastic
Material of the contact:	other copper alloys
Angle contact/conductor connection:	180° (horizontal)
Connection type:	PCB to cable
Number of poles:	7
Housing coating:	uncoated
