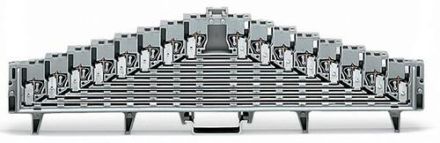

Wago 727-124 terminal block 0.08-1.5qmm series 727

In stock

SKU: 973193

Price on request

€23.78

€0

Overview

727-124 8-ET. O.RASTH. 35X7,5

Property	Value
QS single-wire:	0.08 up to 1.5 mm²
QS fine-stranded:	0.08 to 1.5 mm²
QS multi-stranded:	0.08 to 1.5 mm²
Color:	blue
QS wire end ferrule:	0.25 to 0.75 mm²
Rated voltage:	250 V
Floors:	8
Terminal points per floor:	4
Rated current In:	10 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material after UL94:	V0
End plate required:	yes
Levels internally bridged:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	7.62 mm
Height:	226 mm
Depth:	58.5 mm
