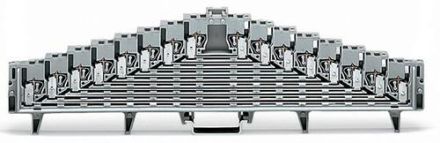

Wago 727-134/004-000 terminal block 0.08-1.5qmm 8 levels blue 10A

In stock

SKU: 974292

Price on request

€27.89

€0

Overview

8-level jumper terminal, without locking hook, one potential per level, with test opening Ø 2.3 mm, imprint: hgfedcba--abcdefgh, for mounting rail 35 x 15, 1.5 mm², 1.50 mm², blue

Property	Value
QS single-wire:	0.08 to 1.5 mm²
QS fine-wire:	0.08 to 1.5 mm²
QS multi-wire:	0.08 to 1.5 mm²
Color:	blue
QS wire end ferrule:	0.25 to 0.75 mm²
Rated voltage:	250 V
Levels:	8
Terminal points per level:	4
Rated current In:	10 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	7.62 mm
Height:	226 mm
Depth:	58.5 mm
