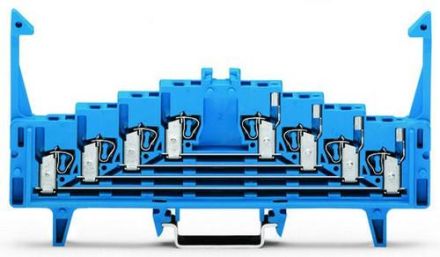

Wago 727-233/023-000 terminal block 0.08-1.5qmm 4 levels blue 12A

In stock

SKU: 978916

Price on request

€13.73

€0

Overview

4-level jumper terminal, with locking hook, one potential per level, with test opening Ø 2.3 mm, imprint: 3-2-1-0--0-1-2-3, for mounting rail 35 x 15, 1.5 mm², 1.50 mm², blue

Property	Value
QS single-wire:	0.08 to 1.5 mm²
QS fine-wire:	0.08 to 1.5 mm²
QS multi-wire:	0.08 to 1.5 mm²
Color:	blue
QS wire end ferrule:	0.25 to 0.75 mm²
Rated voltage:	250 V
Levels:	4
Terminal points per level:	4
Rated current In:	12 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	yes
Width:	7.62 mm
Height:	126 mm
Depth:	62 mm
