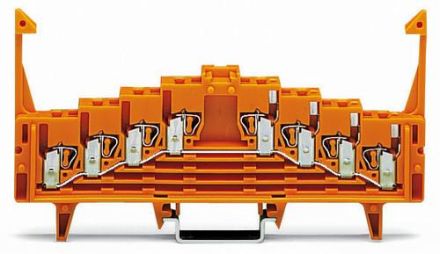

Wago 727-235 terminal block 0.08-1.5qmm series 727

In stock
SKU: 978931
€9.65
Into a basketIn the basketGo

Overview

727-235 4-ET POTENTIAL CL. RASTH. 35X15

Property Value
QS single-wire: 0.08 to 1.5 mm²
QS fine-stranded: 0.08 to 1.5 mm²
QS multi-stranded: 0.08 to 1.5 mm²
Color: orange
QS wire end ferrule: 0.25 to 0.75 mm²
Rated voltage: 250 V
Floors: 4
Terminal points per floor: 4
Rated current In: 18 A
Operating temperature: 105 °C
Connection: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Mounting type: Top hat rail TH35
Flammability class of the insulating material after UL94: V0
End plate required: yes
Levels internally bridged: no
Material of the insulating body: Thermoplastic
Explosion-tested version Ex e: no
Width: 7.62 mm
Height: 126 mm
Depth: 62 mm

Characteristics

Minimal order50 pcs
ManufacturerWago
HAN727-235
GTIN4045454189839
Rated voltage250V
Rated current In18 A
Operating temperatur105°C
Width7.62 mm
ColorOrange
Height126 mm
Mounting typeDIN rail TH35
Depth62 mm
