Wago 727-236/024-000 terminal block 0.08-1.5qmm 4 levels or 18A

In stock

SKU: 979154

Price on request

€13.57

€0

Overview

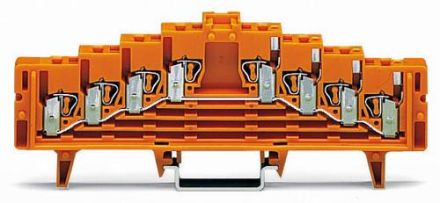

4-level potential terminal, without locking hook, all terminal points bridged internally, with test opening Ø 2.3 mm, imprint: dcba--abcd, for mounting rail 35 x 15, 1.5 mm², 1.50 mm², orange

Property	Value
QS single-wire:	0.08 to 1.5 mm²
QS fine-wire:	0.08 to 1.5 mm²
QS multi-wire:	0.08 to 1.5 mm²
Color:	orange
QS wire end ferrule:	0.25 to 0.75 mm²
Rated voltage:	250 V
Levels:	4
Terminal points per level:	4
Rated current In:	18 A
Operating temperature:	105 °C
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version Ex e:	no
Width:	7.62 mm
Height:	126 mm
Depth:	44.5 mm
