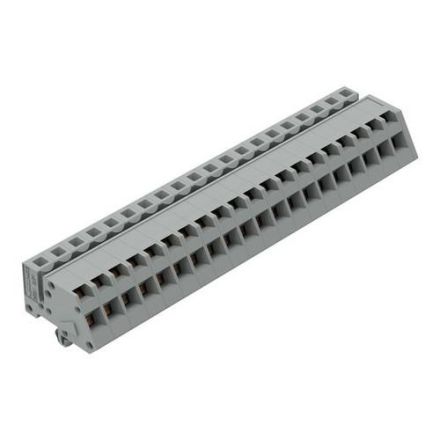

Wago 731-520/008-000 R5mm, 20p, 250V terminal block

In stock

SKU: 981120

Price on request

€14.93

€0

Overview

1-conductor female connector, angled, CAGE CLAMP®, 2.5 mm², pitch 5 mm, 20-pin, locking feet, 2.50 mm², gray

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 up to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	12 A
Operating temperature:	-60 to 85 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Contact design:	socket
With protective conductor:	no
Pitch of the connections:	5 mm
Pitch of the contacts:	5 mm
Degree of protection (IP), mounted:	IP20
Overvoltage category:	III
Degree of contamination:	2
Material of the contact coating:	Tin
Material of the housing:	Plastic
Material of the insulating body:	Thermoplastic
Material of the contact:	Other copper alloys
Angle of contact/conductor connection:	135° (obliquely upwards)
Type of connection:	PCB to cable
Number of poles:	20
Housing coating:	uncoated
