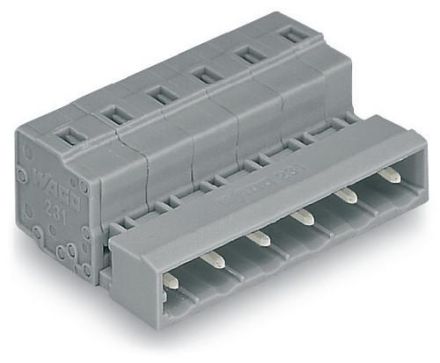

Wago 731-607 pin strip 0.08-2.5qmm series 731 12A 7p

In stock

SKU: 973156

Price on request

€5.96

€0

Overview

731-607 FOUNDATION MOTOR VEHICLE 7 5 MM 7-P

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 up to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	12 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Contact design:	pin
With protective conductor:	no
Pitch of connections:	7.5 mm
Pitch of contacts:	7.5 mm
Degree of protection (IP), mounted:	IP20
Overvoltage category:	III
Degree of pollution:	2
Material of the contact coating:	Tin
Material of the housing:	Plastic
Material of the insulating body:	Thermoplastic
Material of the contact:	Other copper alloys
Angle of contact/conductor connection:	180° (horizontal)
Type of connection:	PCB to cable
Number of poles:	7
Housing coating:	uncoated
