Wago 733-338/105-604/997-446 6A, 160V, 8p, THR, sw connector LP

In stock

SKU: 976300

Price on request

€4.70

€0

Overview

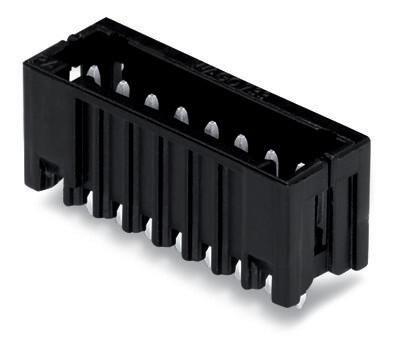

THR pin header, solder pin 0.8 x 0.8 mm, straight, 100% protected against mismating, in tape, pitch 2.5 mm, 8-pin, black

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	THR connection
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	6 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	black
Contact design:	Pin
Pin length:	2.4 mm
Connection pitch:	2.5 mm
Contact pitch:	2.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Contact coating material:	tin
Insulating body material:	Thermoplastic
Angle PCB/contact:	90° (vertical upwards)
Connection type:	flexible PCB connector
Number of poles:	8
