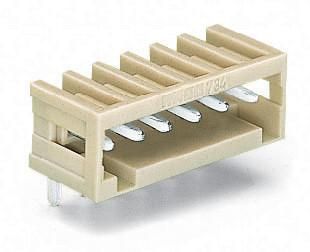

Wago 734-170 PCB connector pin 10p series 734 lgr

In stock

SKU: 978905

Price on request

€2.47

€0

Overview

734-170 FOUNDATION. SOLDERING ST.3, 1X1 FS 10-P.HOR

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Design of the electrical connection:	Soldering connection
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	grey
Contact design:	pin
Length of Pins:	3.8 mm
Pitch of connections:	3.5 mm
Pitch of contacts:	3.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution degree:	2
Material of contact coating:	tin
Material of insulating body:	thermoplastic
Angle PCB/Contact:	0°/180° (horizontal)
Connection type:	flexible PCB connector
Number of poles:	10
