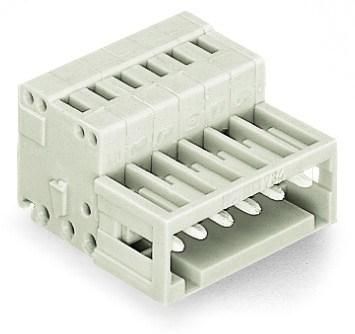

Wago 734-310 1-wire 100% mismating protected light green pin strip

In stock
SKU: 709392
€5.49
Into a basketIn the basketGo

Overview

734-310 1-wire 100% mismating protected light green pin header manufacturer article number: 734-310, manufacturer article name: 1-wire 100% mismating protected light green

Property Value
Connectable cable type: Round cable
Connectable conductor cross-section, single-wire: 0.08 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.25 to 1.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 0.8 to 1.5 mm²
Connectable conductor cross-section, stranded: 0.08 to 1.5 mm²
Number of plug contact rows: 1
Design of the electrical connection: Spring-loaded connection
Rated voltage: 160 V
Rated impulse voltage: 2.5 kV
Rated current In: 10 A
Operating temperature: -60 to 100 °C
Flammability class of the insulating material according to UL 94: V0
Housing color: gray
Contact design: pin
With protective conductor: no
Pitch of the connections: 3.5 mm
Pitch of the contacts: 3.5 mm
Protection class (IP), mounted: IP10
Overvoltage category: III
Pollution level: 2
Material of the contact coating: Tin
Material of the housing: Plastic
Material of the insulating body: Thermoplastic
Material of the contact: Other copper alloys
Angle of contact/conductor connection: 180° (horizontal)
Connection type: PCB to PCB
Number of pins: 10
Housing coating: uncoated

Characteristics

Rated surge voltage2.5 kV
HAB1-wire 100% mismating protected light green
Minimal order50 pcs
ManufacturerWago
HAN734-310
GTIN4044918513661
Connectable conductor cross-section solid0.08 to 1.5 mm²
Connectable conductor cross-section stranded0.08 to 1.5 mm²
Design of the electrical connectionSpring-loaded connection
Rated voltage160V
Rated current In10A
Housing coatingUncoated
Operating temperatur-60 to 100 °C
Flammability class of the insulating material according to UL 94V0
Housing colorGray
Number of poles10
Connection typePCB to PCB
Degree of contamination2
Housing materialPlastic
Overvoltage categoryIII
