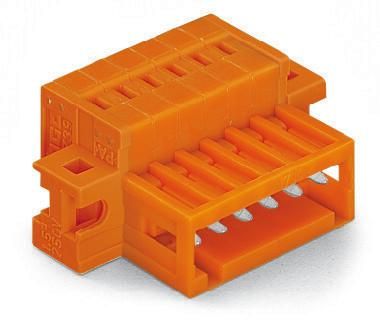

Wago 734-333/019-000 R3.81mm, 3p, 250V terminal block

In stock

SKU: 972983

Price on request

€2.83

€0

Overview

1-conductor pin header, CAGE CLAMP®, 1.5 mm², pitch 3.81 mm, 3-pin, 100% protected against mismating, mounting flange, 1.50 mm², orange

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 1.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without Wire end ferrule:	0.08 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 1.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Contact design:	pin
With protective conductor:	no
Pitch of the connections:	3.81 mm
Pitch of the contacts:	3.81 mm
Protection class (IP), mounted:	IP10
Overvoltage category:	III
Pollution level:	2
Contact coating material:	Tin
Housing material:	Plastic
Insulating body material:	Thermoplastic
Contact material:	Other copper alloys
Angle contact/conductor connection:	180° (horizontal)
Connection type:	PCB to cable
Number of poles:	3
Housing coating:	uncoated
