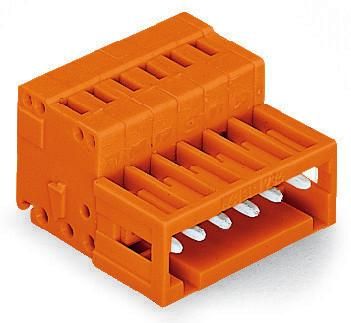

Wago 734-344 pin strip 0.08-1.5qmm series 734 10A

In stock

SKU: 966835

Price on request

€11.70

€0

Overview

734-344 PEN. RM 3.81MM 14-P. CACE-CL.

< td>2.5 kV

Property	Value
Connectable cable type:	Round cable
Connectable conductor cross-section, single-wire:	0.08 to 1.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 1.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Spring-loaded connection
Rated voltage:	160 V
Rated impulse voltage:
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Contact type:	pin
With protective conductor:	no
Pitch of connections:	3.81 mm
Pitch of contacts:	3.81 mm
Protection class (IP), mounted:	IP10
Overvoltage category:	III
Pollution degree:	2
Material of the contact coating:	Tin
Material of the housing:	Plastic
Material of the insulating body:	Thermoplastic
Material of the contact:	other Copper alloys
Angle contact/conductor connection:	180° (horizontal)
Connection type:	PCB to cable
Number of poles:	14
Housing coating:< /td>	uncoated
