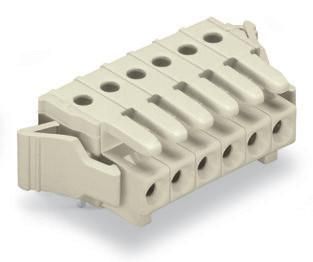

Wago 734-543/037-000 PCB connector pin 13p lgr 1re 3.5mm

In stock

SKU: 976272

Price on request

€10.86

€0

Overview

THT female connector, angled, pitch 3.5 mm, 13-pin, 100% protected against mismating, locking latch, solder pin 0.9 x 0.9 mm, light gray

Property	Value
Number of plug contact rows:	1
Type of banding:	without
Type of PCB mounting:	Connection contact
Design of the electrical connection:	Solder connection
Mounting type:	soldering
Rated voltage:	160 V
Rated impulse voltage:	2.5 kV
Rated current In:	10 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL94:	V0
Suitable for circuit board thickness:	1.5 mm
Housing color:	gray
Contact design:	Pin
Pin length:	3.8 mm
Connector pitch:	3.5 mm
Contact pitch:	3.5 mm
Connector design:	free connector
Overvoltage category:	III
Pollution level:	2
Contact coating material:	tin
Material of the insulating body:	Thermoplastic
Angle circuit board/contact:	0°/180° (horizontal)
Connection type:	flexible circuit board connector
Number of poles:	13
