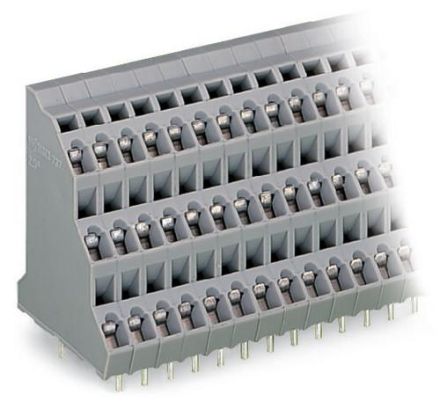

Wago 737-212 print terminal 36f 3re gr series 737 RM=5

In stock

SKU: 978336

Price on request

€19.90

€0

Overview

737-212 3-PIECE TERMINAL VERS.SOLDERING 12-P.

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	36
Number of levels:	3
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	21 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	40 mm
Length of the pin:	4 mm
Pitch of the connections:	5 mm
Overvoltage category:	III
Degree of pollution:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle of circuit board/conductor connection:	45°/135° (obliquely upwards)
