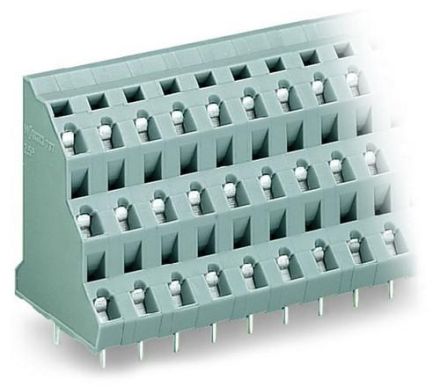

Wago 737-558 print terminal 24f 3re gr series 737 RM=7.5

In stock

SKU: 968451

Price on request

€14.38

€0

Overview

737-558 3-ST class VERS.SOLDERST.8-P. 7.5MM

< /tr> < td>Case color:< tr>

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section fine-stranded with wire end ferrule:	0.25 to 2.5 mm²
Connectable Conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Connection type conductor:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	24
Number of levels:	3
Type of banding:	without
Type of PCB mounting:	Connection contact
Mounting type:	soldering
Rated voltage:	630 V
Rated impulse voltage:< /td>	6 kV
Rated current In:	21 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
gray
Height:	40 mm
Pin length:	4 mm
Connector pitch:	7.5 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
