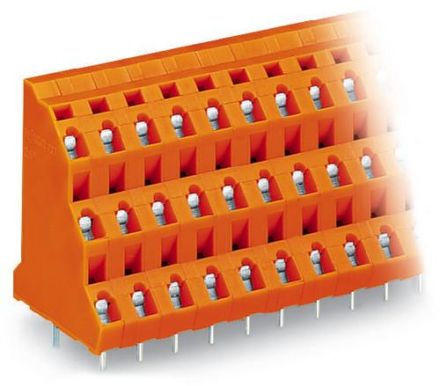

Wago 737-654 print terminal 12f 3re or series 737 RM=7.62

In stock

SKU: 967038

Price on request

€9.66

€0

Overview

737-654 3-ST-KLEMME VERS.SOLDERING ST.4-P.

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	12
Number of levels:	3
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	630 V
Rated impulse voltage:	6 kV
Rated current In:	21 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	orange
Height:	40 mm
Length of the pin:	4 mm
Pitch of the connections:	7.62 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulation body:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
