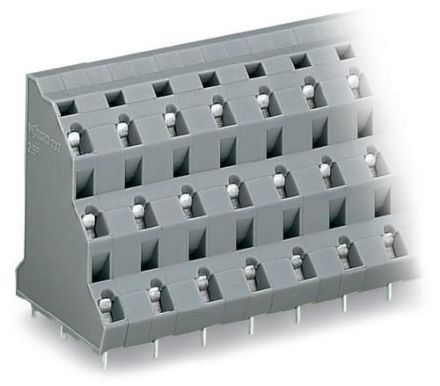

Wago 737-708 print terminal 24f 3re gr series 737 RM=10

In stock
SKU: 967039
€15.10
Into a basketIn the basketGo

Overview

737-708 3-ST-Kl. ESCAPE.SOLDERING ST.8-P. 10 MM

Property Value
Connectable conductor cross-section, single-wire: 0.08 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule: 0.08 to 2.5 mm²
Connectable conductor cross-section, stranded: 0.08 to 2.5 mm²
Conductor connection type: Spring-loaded connection
PCB connection type: Solder connection
Number of electrical connections: 24
Number of levels: 3
Type of banding: without
Type of PCB fastening: Connection contact
Fastening type: soldering
Rated voltage: 1000 V
Rated impulse voltage: 8 kV
Rated current In: 21 A
Operating temperature: -60 to 105 °C
Flammability class of the insulating material according to UL94: V0
Housing color: gray
Height: 40 mm
Length of the pin: 4 mm
Pitch of the connections: 10 mm
Overvoltage category: III
Degree of pollution: 2
Material of the connection surface: Tin
Material of the insulating body: Thermoplastic
Angle of circuit board/conductor connection: 45°/135° (obliquely upwards)

Characteristics

Rated surge voltage8 kV
Minimal order12 pcs
ManufacturerWago
HAN737-708
GTIN4045454022518
Connectable conductor cross-section solid0.08 to 2.5 mm²
Connectable conductor cross-section stranded0.08 to 2.5 mm²
Mounting typeSoldering
Rated voltage1000V
Rated current In21 A
Operating temperatur-60 to 105 °C
Housing colorGray
Height40 mm
Degree of contamination2
Overvoltage categoryIII
