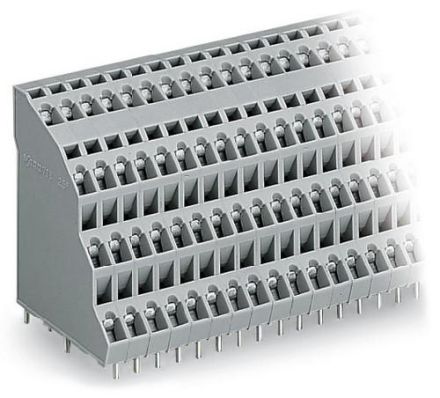

Wago 738-224 print terminal 96f 4re gr series 738 RM=5

In stock

SKU: 968430

Price on request

€71.16

€0

Overview

738-224 4-ST class. VERS.SOLDER ST.24-P. 5 MM

< td>Case color:< tr>

Property	Value
Connectable conductor cross-section, single-wire:	0.08 up to 2.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section stranded:	0.08 to 2.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Soldered connection
Number of electrical connections:	96
Number of levels:	4
Type of banding:	without
Type of PCB mounting:	Connection contact
Mounting type:	soldering
Rated voltage:	320 V
Rated impulse voltage:< /td>	4 kV
Rated current In:	18 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
gray
Height:	44.2 mm
Length of pin:	4 mm
Pitch of connections:	5 mm
Overvoltage category:	III
Pollution degree:	2
Material of the connection surface:	Tin
Material of the insulating body:	Thermoplastic
Angle circuit board/conductor connection:	45°/135° (obliquely upwards)
