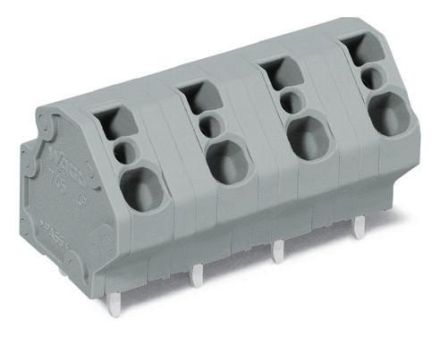

Wago 745-3208 print terminal 8f 1re gr series 745 RM=10

In stock

SKU: 981074

Price on request

€6.68

€0

Overview

745-3208 GDS-KLEMMENL.4QMM 8-P.10MM O.BR

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 4 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	Solder connection
Number of electrical connections:	8
Number of levels:	1
Type of banding:	without
Type of PCB fastening:	Connection contact
Fastening type:	soldering
Rated voltage:	1000 V
Rated impulse voltage:	8 kV
Rated current In:	32 A
Operating temperature:	-60 to 105 °C
Flammability class of the insulating material according to UL94:	V0
Housing color:	gray
Height:	19 mm
Length of the pin:	4 mm
Pitch of the connections:	10 mm
Overvoltage category:	III
Pollution level:	2
Material of the connection surface:	Tin
Material of the insulation body:	Thermoplastic
Angle of circuit board/conductor connection:	45°/135° (obliquely upwards)
