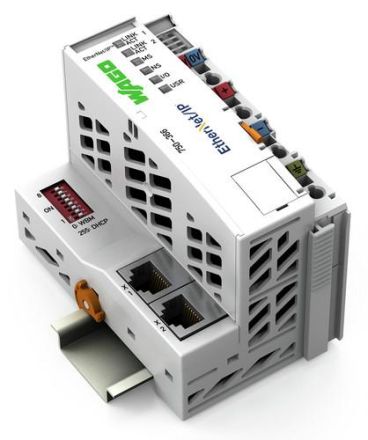

Wago 750-366 Fieldbus coupler EtherNet/IP, 4th generation

Wago 750-366 Fieldbus coupler EtherNet/IP, 4th generation

In stock

SKU: 964877

Price on request

€539.18

€0

Into a basketIn the basketGo

Overview

Fieldbus coupler EtherNet/IP, 4th generation

Property	Value
Design of the electrical connection:	Spring-loaded connection
Input voltage DC:	24 V
Front installation possible:	no
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Suitable for safety functions:	no
IO-Link Master:	no
Max. Input current DC:	0.48 A
Rack mounting possible:	no
Field bus connection via separate bus coupler possible:	no
With bus coupler for modular station construction:	yes
Number of slots:	1
With pluggable modules, digital I/O:	yes
With pluggable modules, analog I/O:	yes
With pluggable modules, Communication modules:	yes
With pluggable modules, function and technology modules:	yes
With pluggable modules, central modules:	yes
With pluggable modules, other:	yes
With integrated power supply:	yes
Type of input voltage:	DC
Protection class (IP):	IP20
Mounting rail mounting possible:	yes
System component:	yes
Number of HW interfaces Industrial Ethernet:	2
With optical interface:	no
With potential separation:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Width:	62 mm
Height:	100 mm
Depth:	71.9 mm
Supports protocol for EtherNet/IP:	yes
Supports protocol for SERCOS:	no
Supports protocol for other bus systems:	yes
Supports protocol for PROFINET CBA:	no
Supports protocol for TCP/IP:	no
Supports protocol for KNX:	no
Supports protocol for Modbus:	no
Supports protocol for PROFIsafe:	no
Supports protocol for AS-Interface Safety at Work:	no
Wireless standard GSM:	no
Supports protocol for INTERBUS:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for SUCONET:	no
Supports protocol for ASI:	no
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for PROFIBUS:	no
Supports protocol for PROFINET IO:	no
Wireless standard GPRS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for CAN:	no
Supports protocol for DeviceNet:	no
Wireless standard UMTS:	no

Characteristics

Supports protocol for KNXNo

With optical interfaceNo

Manufacturer

HAN750-366

GTIN4066966108903

Design of the electrical connectionSpring-loaded connection

Width62 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Height100 mm

IP protection)IP20

Depth71.9 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPYes

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsYes
