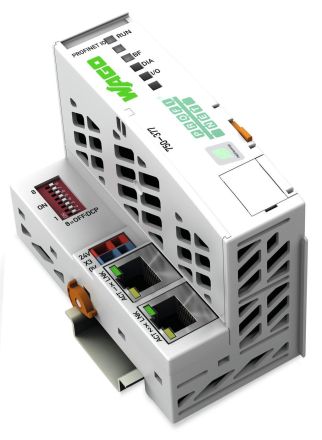

Wago 750-377 Basic device fieldbus series 750 DC 1 slot

Wago 750-377 Basic device fieldbus series 750 DC 1 slot

In stock

SKU: 520338

Price on request

€325.69

€0

Into a basketIn the basketGo

Overview

Fieldbus coupler PROFINET IO 3rd generation ECO Advanced light gray

Property	Value
Number of PROFINET interfaces:	2
Design of the electrical connection:	Spring-loaded connection
Input voltage for DC:	24 V
Front installation possible:	no
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Suitable for safety functions:	no
IO-Link Master:	no
Max. Input current at DC:	0.5 A
Rack mounting possible:	no
Wall/direct mounting possible:	no
Field bus connection via separate bus coupler possible:	no
With bus coupler for modular station construction:	yes
Number of slots:	1
With pluggable modules, digital I/O:	yes
With pluggable modules, analog I/O:	yes
With pluggable modules, communication modules:	yes
With pluggable modules, function and technology modules:	yes
With pluggable modules, central modules:	yes
With pluggable modules, other:	yes
With integrated power supply:	yes
Type of input voltage:	DC
Protection class (IP):	IP20
Mounting rail mounting possible:	yes
System component:	yes
With optical interface:	no
With electrical isolation:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	ATEX gas explosion protection, cat. 3G
Explosion protection category for dust:	ATEX dust explosion protection, cat. 3D
Width:	49.5 mm
Height:	96.8 mm
Depth:	71.9 mm
Supports protocol for EtherNet/IP:	no
Supports protocol for SERCOS:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for TCP/IP:	no
Supports protocol for KNX:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Supports protocol for AS-Interface Safety at Work:	no
Radio standard GSM:	no
Supports protocol for INTERBUS:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for SUCONET:	no
Supports protocol for ASI:	no
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for PROFIBUS:	no
Supports protocol for PROFINET IO:	yes
Wireless standard GPRS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for CAN:	no
Supports protocol for DeviceNet:	no
Wireless standard UMTS:	no

Characteristics

Supports protocol for KNXNo

With optical interfaceNo

HABPROFINET IO advanced

Manufacturer

HAN750-377

GTIN4050821687443

Design of the electrical connectionSpring-loaded connection

Width49.5 mm

Explosion protection category for gasATEX gas explosion protection, cat. 3G

Explosion protection category for dustATEX dust explosion protection, cat. 3D

Suitable for security functionsNo

Height96.8 mm

IP protection)IP20

Depth71.9 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IOYes

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo
