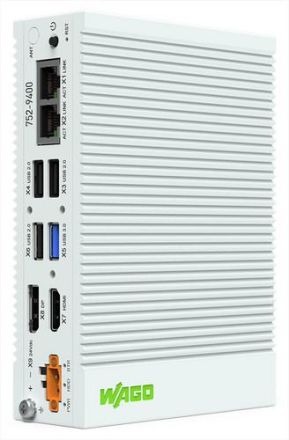

Wago 752-9401 Edge Computer, 2 x ETHERNET, 4 x USB, HD

Wago 752-9401 Edge Computer, 2 x ETHERNET, 4 x USB, HD

In stock

SKU: 963449

Price on request

€1,512.18

€0

Into a basketIn the basketGo

Overview

Edge Computer, 2 x ETHERNET, 4 x USB, HD

Property	Value
Height:	150 mm
Width:	40 mm
Depth:	105 mm
Operating temperature:	-20 to 60 °C
Rail mounting possible:	yes
IO-Link Master:	no
Housing design:	other
Suitable for Windows Vista operating system:	no
Supports protocol for Modbus:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET IO:	no
Wireless standard Bluetooth:	no
Supports protocol for KNX:	no
Supports protocol for data highway:	no
Supports protocol for other bus systems:	yes
Supports protocol for ASI:	no
Supports protocol for SERCOS:	no
Supports protocol for INTERBUS:	no
Wireless standard WLAN 802.11:	no
Supports protocol for PROFIBUS:	no
Supports protocol for Foundation Fieldbus:	no
Suitable for operating system Windows 2003 Server:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for SUCONET:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	no
Suitable for safety functions:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for DeviceNet:	no
Pre-installed operating system:	LINUX
Supports protocol for DeviceNet Safety:	no
Rack mounting possible:	no
Supply voltage DC:	10 to 36 V
Supports protocol for CAN:	no
Front installation possible:	no
Processor type:	Intel Atom
Max. Main memory:	8192 MB
With hard disk:	yes
With floppy disk drive:	no
With other storage media:	yes
With graphics card:	yes
With sound card:	no
Number of free slots, PCI:	1
Supports protocol for LON:	no
Number of HW interfaces Industrial Ethernet:	2
Number of HW interfaces USB:	4
Number of HW interfaces other:	2
Type of supply voltage:	DC
Protection class (IP):	IP40
Suitable for operating system Windows 9x:	no
Suitable for operating system Windows 2000:	no
Suitable for operating system Windows XP:	no
Suitable for operating system Windows ME:	no
Suitable for operating system Windows CE:	no
Suitable for operating system LINUX:	yes
Suitable for operating system, other:	no
Wireless standard GPRS:	no
Suitable for operating system Windows 8:	no
Wireless standard GSM:	no
Suitable for operating system Windows 7:	no
Wireless standard UMTS:	no
Processor clock frequency:	1.91 GHz
With optical drive:	no
Number of slots for storage media:	1
Hard drive storage capacity:	64 TB
