Wago 756-3102/040-020 2m PLC connection cable

In stock

SKU: 967878

Price on request

€25.15

€0

Overview

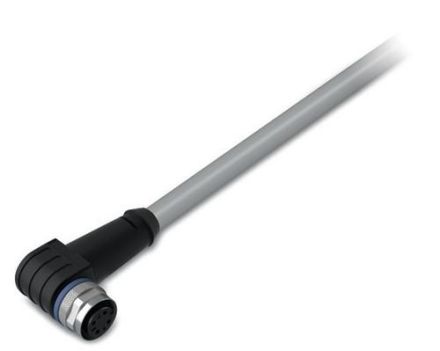

Power cable, M12A socket, angled, 4-pin, length 2 m

Property	Value
Rated current In:	4 A
Cable sheath color:	gray
With LED display:	no
Cable sheath material:	Polyurethane (PUR)
Contact base material:	CuZn
Number of poles:	4
Field connection:	M12
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	angled
Cable length:	2 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-30 to 80 °C
Permissible external cable temperature during installation/handling:	-30 to 80 °C
Rated voltage:	250 V
Voltage resistance:	10 mOhm
Protection class (IP):	IP67
