Wago 756-3104/040-200 20m PLC connection cable

In stock

SKU: 979421

Price on request

€85.91

€0

Overview

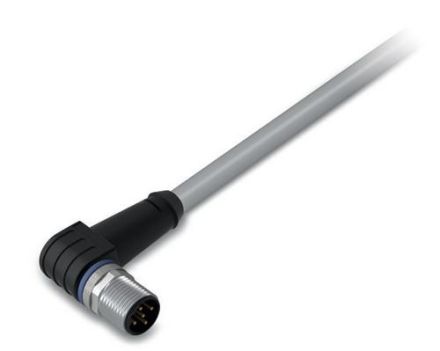

Power cable, M12A connector, angled, 4-pin, length 20 m

Property	Value
Rated current In:	4 A
Color of the cable sheath:	gray
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Material of the contact base:	CuZn
Number of poles:	4
Field connection:	M12
Type of plug contact, field side:	Male (plug)
Cable feed, field side:	angled
Cable length:	20 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-30 to 80 °C
Permissible external cable temperature during installation/handling:	-30 to 80 °C
Rated voltage:	250 V
Voltage resistance:	10 mOhm
Protection class (IP):	IP67
