Wago 756-3106/040-030 data cable series 756 4xAWG18 gr

In stock

SKU: 964110

Price on request

€40.02

€0

Overview

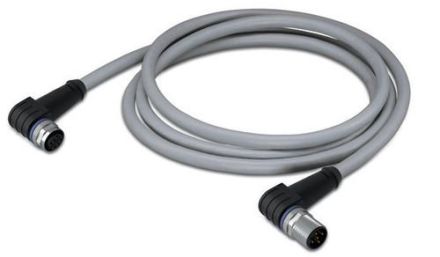

Power cable, M12A socket, angled, M12A plug, angled, 4-pin, length 3 m

Property	Value
Rated current In:	4 A
Color of the cable sheath:	gray
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Material of the contact base:	CuZn
Number of poles:	4
Connection field side:	M12
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	angled
Connection, housing side:	M12
Plug housing:	Male (plug)
Cable feed, housing side:	angled
Cable length:	3 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-30 to 80 °C
Permissible Cable external temperature during assembly/handling:	-30 to 80 °C
Rated voltage:	250 V
Voltage resistance:	10 mOhm
Protection class (IP):	IP67
