Wago 756-3502/050-100 Sensor-Actuator Cable 5p 10m M12 Female

In stock

SKU: 971010

Price on request

€158

€0

Overview

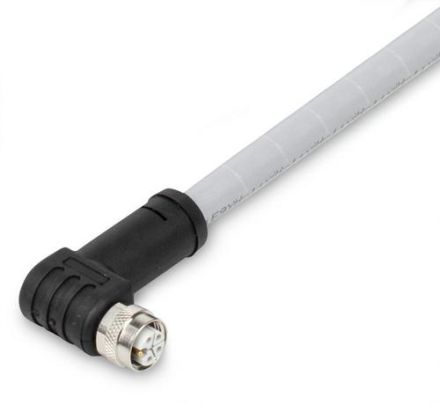

Power cable, M12L socket, angled, 5-pin, length 10 m

Property	Value
Rated current In:	16 A
Cable sheath color:	gray
With LED display:	no
Cable sheath material:	Polyurethane (PUR)
Contact base material:	CuZn
Number of poles:	5
Field-side connection:	M12
Type of plug contact, field-side:	Female (socket)
Cable feed, field-side:	angled
Connection, housing-side:	free cable end
Cable length:	10 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Contact coating material:	nickel/gold
Permissible external cable temperature after installation without vibration:	-40 to 90 °C
Permissible Cable external temperature during assembly/handling:	-30 to 90 °C
Rated voltage:	63 V
Voltage resistance:	5 mOhm
Protection class (IP):	IP68
