Wago 756-5312/060-050 M12, St, 1.5m sensor/actuator cable 5p

In stock
SKU: 979446
€61.39
Into a basketIn the basketGo

Overview

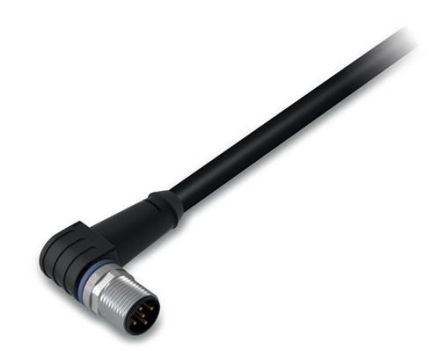

Sensor/actuator cable, M12A connector, angled, 5-pin, length 5 m

Property Value
Rated current In: 4 A
Cable sheath color: black
With LED display: no
Cable sheath material: Polyurethane (PUR)
Contact base material: CuSn
Number of poles: 5
Field-side connection: M12
Type of plug contact, field-side: Male (plug)
Cable feed, field-side: angled
Connection, housing-side: other
Cable feed, housing-side: other
Cable length: 1.5 m
Halogen-free: yes
Shielded: yes
Cable type: multi-core
Radiation-crosslinked: no
Material of the contact coating: other
Permissible external cable temperature after installation without vibration: -50 to 90 °C
Permissible Cable external temperature during assembly/handling: -25 to 90 °C
Rated voltage: 50 V
Voltage resistance: 10 mOhm
Protection class (IP): IP67

Characteristics

Cable typeMulti-core
ShieldedYes
ManufacturerWago
HAN756-5312/060-050
GTIN4045454942366
Rated voltage50V
Rated current In4 A
Halogen freeYes
Cable length1.5m
With LED displayNo
Number of poles5
IP protection)IP67
