Wago 756-5401/060-150 Sensor-Actuator cable 5p 15m M12 Female ger

In stock

SKU: 979448

Price on request

€124

€0

Overview

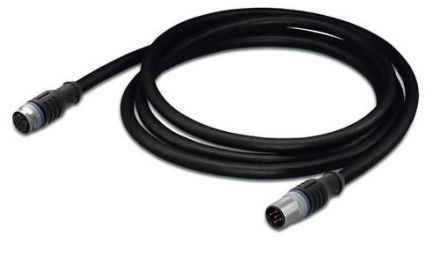

Sensor/actuator cable, M12A socket, axial, M12A plug, axial, 5-pin, length 15 m

Property	Value
Rated current In:	4 A
Color of the cable sheath:	black
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Material of the contact base:	CuSn
Number of poles:	5
Connection field side:	M12
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	straight
Connection, housing side:	M12
Plug housing:	Male (plug)
Cable feed, housing side:	straight
Cable length:	15 m
Halogen-free:	yes
Shielded:	yes
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-50 to 90 °C
Permissible Cable external temperature during assembly/handling:	-25 to 90 °C
Rated voltage:	50 V
Voltage resistance:	10 mOhm
Protection class (IP):	IP67
