Wago 756-5403/060-050 Sensor-Actuator Cable 5p 5m M12 Female

In stock
SKU: 964132
€65.23
Into a basketIn the basketGo

Overview

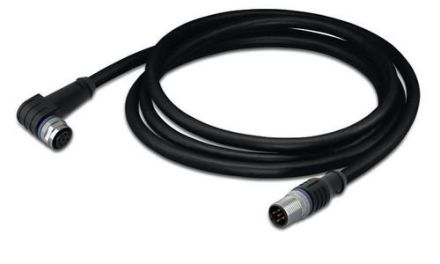

Sensor/actuator cable, M12A socket, angled, M12A plug, axial, 5-pin, length 5 m

Property Value
Rated current In: 4 A
Color of the cable sheath: black
With LED display: no
Material of the cable sheath: Polyurethane (PUR)
Material of the contact base: CuSn
Number of poles: 5
Connection field side: M12
Type of plug contact, field side: Female (socket)
Cable feed, field side: angled
Connection, housing side: M12
Plug housing: Male (plug)
Cable feed, housing side: straight
Cable length: 5 m
Halogen-free: yes
Shielded: yes
Cable type: multi-core
Radiation-crosslinked: no
Material of the contact coating: other
Permissible external cable temperature after installation without vibration: -50 to 90 °C
Permissible Cable external temperature during assembly/handling: -25 to 90 °C
Rated voltage: 50 V
Voltage resistance: 10 mOhm
Protection class (IP): IP67

Characteristics

Cable typeMulti-core
ShieldedYes
ManufacturerWago
HAN756-5403/060-050
GTIN4050821340256
Rated voltage50V
Rated current In4 A
Halogen freeYes
Cable length5 m
With LED displayNo
Number of poles5
IP protection)IP67
