Wago 756-5516/040-020 M12-M12, 2m sensor/actuator cable 4p

In stock

SKU: 980587

Price on request

€45.16

€0

Overview

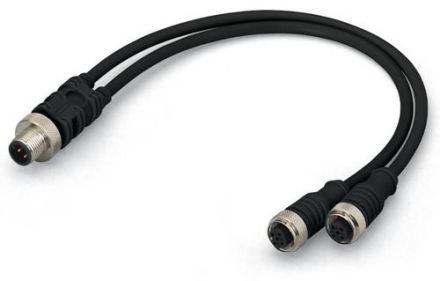

Sensor/actuator cable, 2xM12 socket, axial, M12A plug, axial, 4-pin, length 2 m

Property	Value
Rated current In:	4 A
Color of the cable sheath:	black
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Material of the contact base:	CuSn
Number of poles:	4
Connection field side:	M12
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	straight
Connection, housing side:	M12
Plug housing:	Male (plug)
Cable feed, housing side:	straight
Cable length:	2 m
Halogen-free:	yes
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-50 to 90 °C
Permissible Cable external temperature during assembly/handling:	-25 to 90 °C
Voltage resistance:	10 mOhm
Protection class (IP):	IP67
