Wago 757-383 Distributor Sensor/Actuator Series 757

In stock

SKU: 979473

Price on request

€109.89

€0

Overview

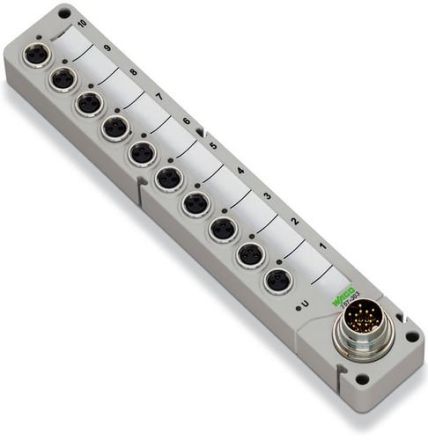

757-383 M8 SENSOR/ACTOR BOX 8F/3P/M16

Property	Value
Design of the connector for the main cable:	M16
Number of sensor/actuator slots:	8
Number of channels per slot:	8
Design of the outlets for sensor/actuator cables:	M8
Number of pins of the sensor/actuator slots:	3
Rated voltage:	32 V
Pollution level:	3
Operating voltage:	10 to 30 V
Max. current load per I/O signal:	2 A
Max. Current carrying capacity per connection socket:	6 A
Material of the contact base:	Brass
Material of the contact coating:	Gold
Material of the insulating body:	PA
Threaded bushings of the sensor/actuator slots:	M8
With LED display:	yes
With potential separation:	yes
Connection for NPN sensors:	no
Drag chain suitability of the fixed cable version:	no
Housing material:	plastic
Housing color:	other
Operating temperature:	-25 to 80 °C
Protection class (IP):	IP68
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Width:	30 mm
Height:	26 mm
Length:	152 mm
