762-4102 TP600

In stock

SKU: 965289

Price on request

€1,368.49

€0

Overview

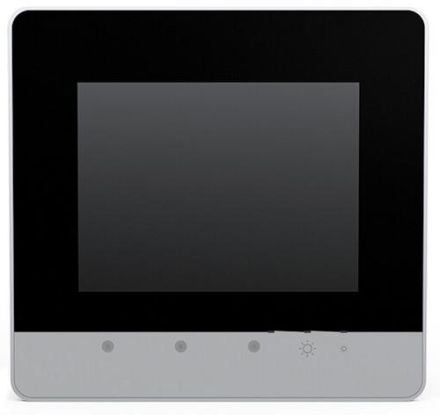

Touch Panel 600, 14.5 cm (5.7), 640 x 480 pixels, 2 x USB, 2 x ETHERNET, Web Panel

Property	Value
Display design:	TFT
Mounting type, boom mounting:	no
Mounting type, table base:	no
Screen diagonal:	5.7 inch
Front installation possible:	yes
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Suitable for safety functions:	no
IO-Link Master:	no
Rack mounting possible:	yes
DIN rail mounting possible:	no
Supports protocol for ASI:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for CAN:	no
Supports protocol for Data-Highway:	no
Supports protocol for DeviceNet:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for INTERBUS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for KNX:	no
Supports protocol for Modbus:	no
Supports protocol for PROFIBUS:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for SERCOS:	no
Supports protocol for other bus systems:	yes
Supports protocol for SUCONET:	no
Supply voltage DC:	24 V
Pre-installed operating system:	LINUX
Wall/direct mounting possible:	yes
Number of pixels, horizontal:	640
Number of Pixels, vertical:	480
With touchscreen:	yes
Integrated keyboard:	no
Integrated mouse cursor control:	no
Max. Main memory:	4096 MB
With hard disk:	no
With floppy disk drive:	no
With other storage media:	yes
Customer-specific configuration possible:	no
Number of free slots, PC card (PCMCIA):	1
Supports protocol for LON:	no
Number of HW interfaces Industrial Ethernet:	2
Number of USB hardware interfaces:	2
Protection class (IP), front:	IP65
Height of front:	163 mm
Width of front:	172 mm
Installation depth:	58 mm
Operating temperature:	0 to 55 °C
Type of supply voltage:	DC
Wireless standard GPRS:	no
Wireless standard GSM:	no
Wireless standard UMTS:	no
Protection class (NEMA):	4
